实战jquery(1)-自建datagrid，有图有真相有源码

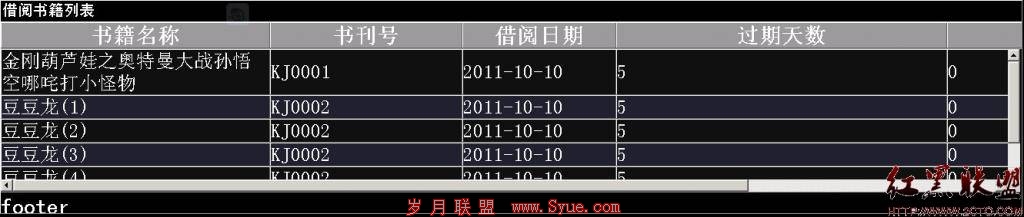

css在不同浏览器的兼容性让人头痛。先发图



基本思路如下：

1、datagrid包裹在一个大的div中，里面包括header、title、body、footer几个部门，每个部分都是一个div

2、标题和内容都包含一个具有相同col的table，通过body的scroll函数滚动标题部门的div，使表头和内容看起来是一个整体

3、设置图片背景实现效果，但是css不支持拉伸，要为每个高度实现图片是个讨厌的事情。

构造函数：


/**
 * DataGrid Class.
 * @param setting 表格配置，包括表头标题，列配置等，可以继续扩展
 * @param id      表的ID，dom中的ID；
 * @param owner   表的父容器。
 *
 */
$.DS.UI.DataGrid = function(setting, id, owner)
构造表的过程如下：


dataGrid = new $.DS.UI.DataGrid({
    headerTitle:"借阅书籍列表",
    columns:[
        {title:"书籍名称", field:"bookname", width:350},
        {title:"书刊号", field:"bookid", width:250},
        {title:"借阅日期", field:"date", width:200},
        {title:"过期天数", field:"days", width:430},
        {title:"逾期费用", field:"fee", width:430}
        ]},"gd_booklist","#booklist");

dataGrid.setJSONData([
    {bookname:"金刚葫芦娃之奥特曼大战孙悟空哪咤打小怪物", bookid:"KJ0001", date:"2011-10-10", days:"5", fee:"0"},
    {bookname:"豆豆龙(1)", bookid:"KJ0002", date:"2011-10-10", days:"5", fee:"0"},
    {bookname:"豆豆龙(2)", bookid:"KJ0002", date:"2011-10-10", days:"5", fee:"0"},
    {bookname:"豆豆龙(3)", bookid:"KJ0002", date:"2011-10-10", days:"5", fee:"0"},
    {bookname:"豆豆龙(4)", bookid:"KJ0002", date:"2011-10-10", days:"5", fee:"0"},
    {bookname:"豆豆龙(5)", bookid:"KJ0002", date:"2011-10-10", days:"5", fee:"0"}
]);
完整代码和css如下：

js代码：


(function($){
    if( !$.DS ) $.DS = {};
    if( !$.DS.UI ) $.DS.UI = {};

    $.DS.UI.defaultDataGridSetting = {

    };

    $.DS.UI.allDataGrid = {};

    /**
     * DataGrid Class.
     * @param setting 表格配置，包括表头标题，列配置等，可以继续扩展
     * @param id    表的ID，dom中的ID；
     * @param owner   表的父容器。
     *
     */
    $.DS.UI.DataGrid = function(setting, id, owner){
        this.id = id;
        if( !id ) id = "_dg_"+Math.random();

        this.setting = $.extend($.DS.UI.defaultDataGridSetting, setting);

        this.frame = $("<DIV id=/""+id+"/"></div>");
        this.frame[0]._jobj = this;
        this.frame.addClass("datagrid-frame");
        this.frame.append("<div id=/"_dg_header/">"+setting.headerTitle+"</div>" +
                "<div id=/"_dg_title/"/>" +
                "<div id=/"_dg_body/"/>" +
                "<div id=/"_dg_footer/">footer</div>");

        thisthis.header = this.frame.find("#_dg_header");
        this.header.addClass("datagrid-header");

        thisthis.title = this.frame.find("#_dg_title");
        this.title.addClass("datagrid-title");

        thisthis.body = this.frame.find("#_dg_body");
        this.body.addClass("datagrid-body");

        var _title = this.title;
        var _body = this.body;

        _frame = this;

        this.body.scroll(function(obj){
            _frame.title.offset({left:_frame.content.offset().left});
        });

        thisthis.footer = this.frame.find("#_dg_footer");
        this.footer.addClass("datagrid-footer");

        this.columns(setting.columns);

        this.owner(owner);
    };

    $.DS.UI.DataGrid.prototype = {
        /**
         * @param parent null=getter not null=setter
         */
        owner:function(owner){
            if( null === owner ) return this._owner;
            if( $(owner) === this._owner ) return this._owner;
            //remove from current parent;
            if(this._owner) _owner.remove(this.id);
            this._owner = $(owner);
            this._owner.append(this.frame);
            this.updateDisplay();
        },

        columns:function(columns){
            if( null === columns ) return this._columns;

            this._columns = columns;
            this.title.empty();
            var title = "";
            var cols = "";
            var testTB = "";
            var columnslength = 0;
            for (var i=0;i<this._columns.length;i++){
                var field = this._columns[i];
                columnslength += field.width;
                //title += "<div style=/"width:"+(field.width)+"/" class=/"datagrid-title-cell/"><p>"+field.title+"</P></div>";
                title += "<td>"+field.title+"</td>";
                cols += "<col width=/""+(field.width)+"/"/>";
                //testTB += "<td>asdfasdf</td>";
            }

            this.title.width(columnslength+1000);
            title = "<table style=/"float:left/" width=/""+(columnslength)+"/" cellspacing=/"0/" cellpadding=/"0/" border=/"0/">"+cols+"<tr>"+title+"</tr></table>";
            title += "<table style=/"float:left/" width=/"900/"  cellspacing=/"0/" cellpadding=/"0/" border=/"0/"><tr><td width=/"900/">　</td></tr></table>";
            this.title.html(title);

            var tab = "<table width=/""+columnslength+"/" cellspacing=/"0/" cellpadding=/"0/" border=/"0/" id=/"_dg_contant/">"+cols+"<tbody/></table>";
            this.body.html(tab);
            thisthis.content = this.body.find("#_dg_contant");
            //this.content.find(">tbody").append("<tr>"+testTB+"</tr>");
        },

        loadData:function(url){

        },

        updateDisplay:function(){
            this.body.width(this.body.parent().width()- 2);
            this.body.height(this.body.parent().height() - this.header.height()
                - this.title.height() - this.footer.height() );
        },

        setJSONData:function(data){
            this.content.find(">tbody").empty();
            var html = "";
            for(var j=0; j < data.length; j++){
                html = "<tr class=/"datagrid-body-row-"+ (j%2) +"/">"
                for (var i=0;i<this._columns.length;i++){
                    var field = this._columns[i];
                    value = data[j][field.field] || ' ';
                    html += "<td>"+value+"</td>";
                }
                html += "</tr>";
                this.content.find(">tbody").append(html);
            }
        },

        setDatasource:function(datasource){

        }
    }

    $.DS.UI.findDataGrid = function(id){
        return $.DS.UI.allDataGrid[id];
    }
})(jQuery)
css部分


@CHARSET "UTF-8";

.datagrid-frame{
    border-bottom: 1px solid #999999;
    border-top: 1px solid #ffffff;
    border-left: 1px solid  #ffffff;
    border-right: 1px solid #999999;

    width:99%;
    height:99%;
    text-align: left;
    overflow: hidden
}

.datagrid-header{
    font-size: 20;
    padding:2 2 2 2;
    font-family: 黑体;
    overflow: hidden
}

.datagrid-title-viewport{
    width:100%;
    position: relative;
    list-style: none;
    overflow: hidden
}

.datagrid-title{
    left: 0;
    border-bottom: 1px solid #999999;
    border-top: 1px solid #eeeeee;

    position: relative;
    overflow:hidden
}

.datagrid-title td{
    border-bottom: 1px solid #666666;
    border-top: 1px solid #ffffff;
    border-left: 1px solid  #ffffff;
    border-right: 1px solid #666666;

    font-size: 28;
    text-align: center;
    font-weight: bold;
    cursor: pointer;
    background-color: #999
}

.datagrid-title-cell{
    position: relative;
    float:left;
    /*padding: 0 5 0 5;*/
    cursor: pointer;
    border-bottom: 1px solid #999999;
    border-top: 1px solid #ffffff;
    border-left: 1px solid  #ffffff;
    border-right: 1px solid #999999;

    background-color: #aaaaaa;
    font-weight: bold;
    font-size: 26;
}

.datagrid-body{
    overflow:auto;
    border-bottom: 1px solid #999999
}

.datagrid-body td{

    border-bottom: 1px solid #666666;
    border-top: 1px solid #ffffff;
    border-left: 1px solid  #ffffff;
    border-right: 1px solid #666666;

    font-size: 25;
}

.datagrid-body-row-0{
    background: #111
}

.datagrid-body-row-1{
    background: #223
}

.datagrid-body-cell{

}

.datagrid-footer{
    font-size: 30;
    font-family: 黑体
}
