VB.NET 串口访问之三

来源:岁月联盟 编辑:exp 时间:2011-10-02

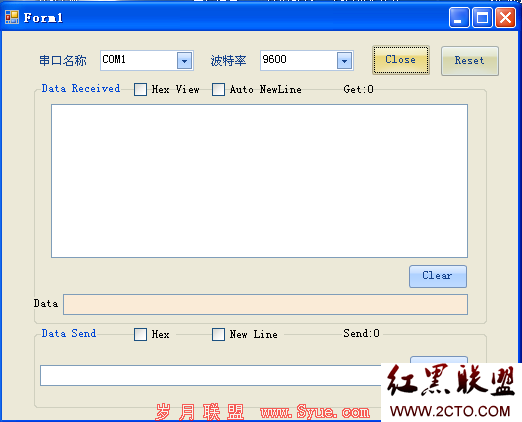

程序如下:





Imports System

Imports System.Collections.Generic

Imports System.ComponentModel

Imports System.Data

Imports System.Drawing

Imports System.Linq

Imports System.Text

Imports System.IO.Ports

Imports System.Threading

Imports System.Text.RegularExpressions



'例如:AA 44 05 01 02 03 04 05 EA

'    这里我假设的一条数据,协议如下:

'    数据头:     AA 44

'    数据长度:05

'    数据正文:01 02 03 04 05

'    校验:       EA

'    一般数据的校验,都会采用常用的方式,CRC16,CRC32,Xor。



Public Class Form1



    WithEvents Comm As SerialPort = New SerialPort

    Private Builder As StringBuilder = New StringBuilder '避免在事件处理方法中反复的创建,所以定义到外面

    Private ReceiveCount As Long = 0     '接收计数

    Private SendCount As Long = 0        '发送计数



    Private Listening As Boolean = False  '是否没有执行完invoke相关操作

    Private Closingg As Boolean = False     '是否正在关闭串口,执行Application.DoEvents,并阻止再次invoke



    Private Buffer As List(Of Byte) = New List(Of Byte)(4096) '默认分配1页内存,并始终限制不允许超过

    Private Binary_Data_1(9) As Byte      'AA 44 05 01 02 03 04 05 EA



    Public Delegate Sub UpdateData(ByVal mByte() As Byte)





    Public Sub ShowData(ByVal mByte() As Byte)

        Console.WriteLine(mByte)

        ReceiveCount += mByte.Length          '统计字节总数

        Builder.Clear()                       '清除字符串构造器的内容

        Console.WriteLine("Main1() invoke on thread{0}.", Thread.CurrentThread.ManagedThreadId)

        If CheckBoxHex.Checked Then

            For Each b As Byte In mByte

                Builder.Append(b.ToString("X2") + " ")

            Next

        Else

            Builder.Append(Encoding.ASCII.GetString(mByte))

        End If

        TxtGet.AppendText(Builder.ToString)

        labelGetCount.Text = "Get:" + ReceiveCount.ToString

    End Sub



    Public Delegate Sub UpdateStr(ByVal mByte As String)



    Public Sub ShowStr(ByVal mByte As String)

        TxtGet.Text = mByte

    End Sub



    Private Sub Form1_Load(sender As System.Object, e As System.EventArgs) Handles MyBase.Load



        '初始化下拉串口名称列表框

        Dim Ports() As String = SerialPort.GetPortNames

        Array.Sort(Ports)

        ComboPortName.Items.AddRange(Ports)

        ComboPortName.SelectedIndex = IIf(ComboPortName.Items.Count > 0, 0, -1)

        ComboBaudrate.SelectedIndex = ComboBaudrate.Items.IndexOf("9600")

        '初始化Serialport对象

        Comm.NewLine = vbCrLf

        Comm.RtsEnable = True



        'AddHandler Obj.Ev_Event, AddressOf EventHandler

        'RemoveHandler Obj.Ev_Event, AddressOf EventHandler

        'AddHandler Comm.DataReceived, AddressOf Comm_DataReceived

        BtnXReset.PerformClick()





    End Sub



    Private Sub Comm_DataReceived(sender As Object, e As System.IO.Ports.SerialDataReceivedEventArgs) Handles Comm.DataReceived

        If Closingg Then Return '如果正在关闭,忽略操作,直接返回,尽快的完成串口监听线程的一次循环



        Try

            Listening = True                    '设置标记,说明我已经开始处理数据,一会儿要使用系统UI的。

            Dim n As Long = Comm.BytesToRead    '先记录下来,避免某种原因,人为的原因,操作几次之间时间长,缓存不一致

            Dim Buf(n - 1) As Byte              '声明一个临时数组存储当前来的串口数据



            Comm.Read(Buf, 0, n)                '读取缓冲数据



            Dim Data_1_Catched As Boolean = False     '缓存记录数据是否捕获到

            Console.WriteLine("Main0() invoke on thread{0}.", Thread.CurrentThread.ManagedThreadId)





            Buffer.AddRange(Buf)



            While Buffer.Count >= 4

                '请不要担心使用>=,因为>=已经和>,<,=一样,是独立操作符,并不是解析成>和=2个符号

                '查找数据头



                If (Buffer(0) = &HAA And Buffer(1) = &H44) Then



                    '探测缓存数据是否有一条数据的字节,如果不够,就不用费劲的做其他验证了

                    '前面已经限定了剩余长度>=4,那我们这里一定能访问到buffer[2]这个长度



                    Dim Len As Integer = Buffer(2)

                    '数据完整判断第一步,长度是否足够

                    'len是数据段长度,4个字节是while行注释的3部分长度



                    If Buffer.Count < Len + 4 Then Exit While '数据不够的时候什么都不做,退出循环



                    '这里确保数据长度足够,数据头标志找到,我们开始计算校验

                    '2.3 校验数据,确认数据正确

                    '异或校验,逐个字节异或得到校验码

                    Dim CheckSum As Byte = 0



                    For i As Integer = 0 To Len + 3

                        CheckSum = CheckSum Xor Buffer(i)

                    Next



                    If CheckSum <> Buffer(Len + 3) Then

                        Buffer.RemoveRange(0, Len + 4)

                        Continue While

                    End If

                    '至此,已经被找到了一条完整数据。我们将数据直接分析,或是缓存起来一起分析

                    '我们这里采用的办法是缓存一次,好处就是如果你某种原因,数据堆积在缓存buffer中

                    '已经很多了,那你需要循环的找到最后一组,只分析最新数据,过往数据你已经处理不及时

                    '了,就不要浪费更多时间了,这也是考虑到系统负载能够降低。



                    '复制一条完整数据到具体的数据缓存

                    Buffer.CopyTo(0, Binary_Data_1, 0, Len + 4)



                    Data_1_Catched = True

                    Buffer.RemoveRange(0, Len + 4)

                Else

                    Buffer.RemoveAt(0)  '这里是很重要的,如果数据开始不是头,则删除数据

                End If

            End While



            If Data_1_Catched Then



                '我们的数据都是定好格式的,所以当我们找到分析出的数据1,就知道固定位置一定是这些数据,我们只要显示就可以了



                Dim data As String = Binary_Data_1(3).ToString("X2") + " " + Binary_Data_1(4).ToString("X2") +

                                     Binary_Data_1(5).ToString("X2") + " " + Binary_Data_1(6).ToString("X2") +

                                     Binary_Data_1(7).ToString("X2")



                Dim a As UpdateStr = New UpdateStr(AddressOf ShowStr)

                Me.BeginInvoke(a, data)



            End If



            '如果需要别的协议,只要扩展这个data_n_catched就可以了。往往我们协议多的情况下,还会包含数据编号,给来的数据进行

            '编号,协议优化后就是: 头+编号+长度+数据+校验

            '</协议解析>



            Dim b As UpdateData = New UpdateData(AddressOf ShowData)

            Me.BeginInvoke(b, Buf)



        Catch ex As Exception

            Err.Clear()

        Finally

            Listening = False                    '我用完了,ui可以关闭串口了。

        End Try

    End Sub



    Private Sub BtnXOpen_Click(sender As System.Object, e As System.EventArgs) Handles BtnXOpen.Click

        '根据当前串口对象,来判断操作

        If Comm.IsOpen Then

            Closingg = True '

            While Listening

                Application.DoEvents()

            End While

            '打开时点击,则关闭串口

            Comm.Close()

            Closingg = False

        Else

            Comm.PortName = ComboPortName.Text

            Comm.BaudRate = Integer.Parse(ComboBaudrate.Text)

            Try

                Comm.Open()

            Catch ex As Exception

                '捕获到异常信息,创建一个新的comm对象,之前的不能用了。

                Comm = New SerialPort

                '现实异常信息给客户。

                MessageBox.Show(ex.Message)

            End Try

        End If



        '设置按钮的状态

        BtnXOpen.Text = IIf(Comm.IsOpen, "Close", "Open")

        BtnXOpen.Enabled = Comm.IsOpen



    End Sub



    '动态的修改获取文本框是否支持自动换行。

    Private Sub CheckBoxNewLineGet_CheckedChanged(sender As System.Object, e As System.EventArgs) Handles CheckBoxNewLineGet.CheckedChanged

        TxtGet.WordWrap = CheckBoxNewLineGet.Checked

    End Sub



    Private Sub BtnXSend_Click(sender As System.Object, e As System.EventArgs) Handles BtnXSend.Click

        Dim n As Integer = 0  '定义一个变量,记录发送了几个字节

        If checkBoxHexSend.Checked Then   '16进制发送

            '我们不管规则了。如果写错了一些,我们允许的,只用正则得到有效的十六进制数

            Dim Mc As MatchCollection = Regex.Matches(TxtSend.Text.Trim, "(?i)[/da-f]{2}")   '"(?i)[/da-f]{2}"

            Dim buf As List(Of Byte) = New List(Of Byte)



            '依次添加到列表中

            For Each m As Match In Mc

                '  buf.Add(Byte.Parse(m.Value))

                buf.Add(Byte.Parse(m.Value, System.Globalization.NumberStyles.HexNumber))

            Next



            '转换列表为数组后发送

            Comm.Write(buf.ToArray, 0, buf.Count)

            n = buf.Count

        Else                             'ascii编码直接发送

            '包含换行符

            If checkBoxNewlineSend.Checked Then

                Comm.WriteLine(TxtSend.Text)

                n = TxtSend.Text.Length + 2

            Else

                Comm.Write(TxtSend.Text)

                n = TxtSend.Text.Length

            End If

        End If



        SendCount += n    '累加发送字节数

        labelSendCount.Text = "Send:" + SendCount.ToString

    End Sub



    Private Sub BtnXReset_Click(sender As System.Object, e As System.EventArgs) Handles BtnXReset.Click



        '复位接受和发送的字节数计数器并更新界面。

        SendCount = 0

        ReceiveCount = 0

        labelGetCount.Text = "Get:0"

        labelSendCount.Text = "Send:0"

        Builder.Clear()



    End Sub



    Private Sub BtxClear_Click(sender As System.Object, e As System.EventArgs) Handles BtxClear.Click

        TxtGet.Text = ""

        Builder.Clear()

    End Sub

End Class



  摘自:wl58796351的专栏
