步步为营 SharePoint 开发学习笔记系列 九、SharePoint web service 开发(上)
概要
Sharepoint中提供了很多开箱即用的Web Service，使用这些web service我们可以进行远程调用， 在"web server extensions/12/ISAPI"(其通常位于C:/Program Files/Common Files/Microsoft Shared/web server extensions/12/ISAPI")之下的"Microsoft Shared"目录中有大部分Web Services的物理文件。用于管理中心工具的管理Web Service位于ADMISAPI文件夹中，其在管理中心控制台里是一个名为"_vti_adm"的虚拟目录。当你创建了一个SharePoint站点时，它将包含一个名为"_vti_bin"的虚拟目录，以指向这个位置。IIS不为子站点包含任何应用程序或虚拟目录，它们只是包含通过SharePoint元数据和HttpModules实现的对_vti_bin虚拟目录的映射。

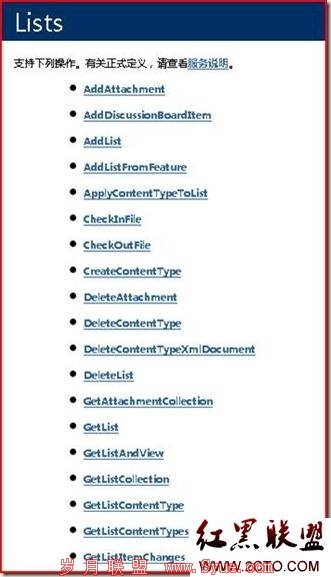

先看下Lists.asmx中的一些常用功能
首先我们先连接web Service
view sourceprint?01 public static NetworkCredential GetCredentials(SiteType type)
02 {
03
04 return new System.Net.NetworkCredential(ConfigurationManager.AppSettings["Source_SPWSUserName"],
05 ConfigurationManager.AppSettings["Source_SPWSUserPassword"], ConfigurationManager.AppSettings["Source_SPWSDomain"]);
06 }
07
08 /// <summary>
09 /// Get the list webservice based on the url
10 /// </summary>
11 /// <returns></returns>
12 public static SPListWS.Lists GetListWebService(ListBE listProperty)
13 {
14 string wsUrl = GetWSUrl(listProperty) + "_vti_bin/Lists.asmx";
15 SPListWS.Lists ws = new SPListWS.Lists();
16 ws.Url = wsUrl;
17 ws.Credentials = WSHelper.GetCredentials(listProperty.Type);
18
19 return ws;
20 }

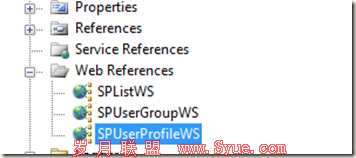

再把web service引用进来
Lists.GetListItems的用法
根据条件来查询的query语句
view sourceprint?01 private string GetCondition
02 {
03 get
04 {
05 return @"<Where>
06 <And>
07 <And>
08 <Geq>
09 <FieldRef Name='Created' />
10 <Value Type='DateTime'>{0}</Value>
11 </Geq>
12 <Leq>
13 <FieldRef Name='Created' />
14 <Value Type='DateTime'>{1}</Value>
15 </Leq>
16 </And>
17 <Gt>
18 <FieldRef Name='ID' />
19 <Value Type='Counter'>0</Value>
20 </Gt>
21 </And>
22 </Where>";
23 }
24 }
而后再调用Lists.GetListItems方法，返回的是XmlNode的结果集
view sourceprint?01 /// <summary>
02 ///
03 /// </summary>
04 /// <returns></returns>
05 private List<ListItemBE> GetSourceListItems(DateTime startDate, DateTime endDate)
06 {
07 int rowLimit = 8000;
08 XmlDocument xmlDoc = new System.Xml.XmlDocument();
09 XmlElement query = xmlDoc.CreateElement("Query");
10 XmlElement viewFields = xmlDoc.CreateElement("ViewFields");
11 XmlElement queryOptions = xmlDoc.CreateElement("QueryOptions");
12
13 /*Use CAML query*/
14 query.InnerXml = string.Format(GetCondition, SPUtility.CreateISO8601DateTimeFromSystemDateTime(startDate), SPUtility.CreateISO8601DateTimeFromSystemDateTime(endDate));
15 viewFields.InnerXml = GetColumnFieldRef(MigrateProperty.AllColumn);
16 queryOptions.InnerXml = "<ViewAttributes Scope=/"RecursiveAll/" />";
17 MigrateProperty.AllColumn.Remove("ID");
18 System.Xml.XmlNode nodes = _ws.GetListItems(_listProperty.ListName, string.Empty, query, viewFields, rowLimit.ToString(), queryOptions, null);
19 return GetListItemListFromXml(nodes);
20 }
从XmlNode取得我们需要的数据
view sourceprint?01 /// <summary>
02 ///
03 /// </summary>
04 /// <param name="nodes"></param>
05 /// <returns></returns>
06 private List<ListItemBE> GetListItemListFromXml(XmlNode nodes)
07 {
08 UserOperations userOperations = new UserOperations(_listProperty);
09 List<ListItemBE> result = new List<ListItemBE>();
10 ListItemBE listItem;
11 foreach (XmlNode node in nodes)
12 {
13 if (node.Name == "rs:data")
14 {
15 for (int i = 0; i < node.ChildNodes.Count; i++)
16 {
17 if (node.ChildNodes[i].Name == "z:row")
18 {
19 listItem = GetListItemBEFromXmlNode(node.ChildNodes[i], userOperations);
20 if (node.ChildNodes[i].Attributes.GetNamedItem("ows_ParentFolderId") == null)
21 {
22 listItem.ColumnValue.Add("FSObjType", "1");
23 listItem.ColumnValue.Add("BaseName", listItem.ColumnValue["Title"]);
24 result.Add(listItem);
25 }
26 else
27 {
28 listItem.ColumnValue.Add("FileRef", node.ChildNodes[i].Attributes["ows_FileRef"].Value);
29 secondListItem.Add(listItem);
30 }
31 }
32 }
33 }
34 }
35 return result;
36 }
37
38 /// <summary>
39 ///
40 /// </summary>
41 /// <param name="node"></param>
42 /// <param name="userOperations"></param>
43 /// <returns></returns>
44 private ListItemBE GetListItemBEFromXmlNode(XmlNode node, UserOperations userOperations)
45 {
46 ListItemBE listItem = new ListItemBE();
47 listItem.Id = node.Attributes["ows_ID"].Value;
48 foreach (KeyValuePair<string, string> column in MigrateProperty.AllColumn)
49 {
50 string nodeValue = string.Empty;
51 if (node.Attributes.GetNamedItem("ows_" + column.Key) != null)
52 nodeValue = node.Attributes["ows_" + column.Key].Value;
53 if (string.Equals(column.Key, "Attachments", StringComparison.InvariantCultureIgnoreCase))
54 {
55 GetAttachmentFromNode(nodeValue, listItem.Id);
56 continue;
57 }
58 if (string.Equals(column.Key, "Author", StringComparison.InvariantCultureIgnoreCase)
59 || string.Equals(column.Key, "Editor", StringComparison.InvariantCultureIgnoreCase))
60 {
61 listItem.ColumnValue.Add(column.Value, userOperations.GetUserNameByOriginalName(nodeValue));
62 continue;
63 }
64 if (node.Attributes.GetNamedItem("ows_" + column.Key) != null)
65 listItem.ColumnValue.Add(column.Value, nodeValue);
66 else
67 listItem.ColumnValue.Add(column.Value, string.Empty);
68 }
69 return listItem;
70 }
MigrateProperty.AllColumn定义如下
view sourceprint?01 public Dictionary<string,string> AllColumn
02 {
03 get
04 {
05 Dictionary<string,string> listColumn = new Dictionary<string,string>();
06 listColumn.Add("ID", "ID");
07 listColumn.Add("Title", "Title");
08 listColumn.Add("Author", "Author");
09 listColumn.Add("Created", "Created");
10 listColumn.Add("Editor", "Editor");
11 listColumn.Add("Modified", "Modified");
12 listColumn.Add("Attachments", "Attachments");
13 listColumn.Add("ContentType", "ContentType");
14 listColumn.Add("Body", "Body");
15 listColumn.Add("ThreadIndex", "ThreadIndex");
16 listColumn.Add("ParentFolderId", "ParentFolderId");
17 listColumn.Add("TrimmedBody", "TrimmedBody");
18 return listColumn;
19 }
20 }
而我们ListItemBE的定义如下，保存返回的结果集
view sourceprint?01 public class ListItemBE
02 {
03 public ListItemBE()
04 {
05 ColumnValue = new Dictionary<string, string>();
06 }
07
08 public string Id { get; set; }
09
10 public Dictionary<string, string> ColumnValue { get; set; }
11
12 }
如上所示的步骤，我们就可以根据自定义的query语句通过web service来取得结果集。
Lists.UpdateListItems的用法
首先看下Insert item的xml格式
view sourceprint?01 <Batch OnError="Continue" ListVersion="1"
02 ViewName="270C0508-A54F-4387-8AD0-49686D685EB2">
03 <Method ID="1" Cmd="New">
04 <Field Name='ID'>New</Field>
05 <Field Name="Title">Value</Field>
06 <Field Name="Date_Column">2007-3-25</Field>
07 <Field Name="Date_Time_Column">
08 2006-1-11T09:15:30Z</Field>
09 </Method>
10 </Batch>
如果插入的item是folder时，插入的xml格式如下
view sourceprint?1 <Batch OnError="Continue" PreCalc="TRUE"
2 ListVersion="0"
3 ViewName="{EF2F5A21-0FD0-4654-84ED-112B4F5A48F8}">
4 <Method ID="1" Cmd="New">
5 <Field Name="ID">New</Field>
6 <Field Name="FSObjType">1</Field>
7 <Field Name="BaseName">Name</Field>
8 </Method>
9 </Batch>
我们生成xml时做如下处理,根据我们定义的ListItemBE方法来做如下处理
view sourceprint?01 /// <summary>
02 /// Returns the XML that will be used to batch insert items
03 /// </summary>
04 /// <param name="batch"></param>
05 /// <returns></returns>
06 private string GetInsertXML(List<ListItemBE> batch)
07 {
08 StringBuilder xml = new StringBuilder();
09 xml.Append(string.Format(@"<Batch OnError=""Continue"" {0}>", _listProperty.RootUrl));
10 foreach (ListItemBE listItem in batch)
11 {
12 xml.AppendFormat(@"<Method ID=""{0}"" Cmd=""New"">", listItem.Id);
13 xml.Append(GetInsertInnerXml(listItem));
14 xml.Append("</Method>");
15 }
16 xml.Append("</Batch>");
17
18 return xml.ToString();
19 }
调用方式如下:
view sourceprint?01 /// <summary>
02 /// Insert the items
03 /// </summary>
04 /// <param name="batch"></param>
05 /// <returns></returns>
06 private UpdateResultBE InsertItems(List<ListItemBE> batch)
07 {
08 //Get the Insert XML Node
09 XmlNode batchNode = GetInsertXmlNode(batch);
10 XmlNode result = null;
11
12 _logger.Log("Started batch uploading list Items");
13 try
14 {
15 //Call the webservice
16 result = _ws.UpdateListItems(_listProperty.ListName, batchNode);
17 }
18 catch (Exception ex)
19 {
20 _logger.Log(String.Format("Error Inserting Items. Exception: {0}. Stack Trace: {1}", ex.Message, ex.StackTrace));
21 }
22
23 _logger.Log("Finished batch uploading list items");
24
25 //Transform the result into an object
26
27 UpdateResultBE insertResult = new UpdateResultBE(result, _listProperty);
28 LogInsertResult(insertResult);
29
30 return insertResult;
31 }
我们的UpdateResultBE定义如下，它是用来获取返回我们想要的结果集。
返回结果集格式如下：
view sourceprint?01 * <Results xmlns="http://schemas.microsoft.com/sharepoint/soap/">
02 <Result ID="1,Update">
03 <ErrorCode>0x00000000</ErrorCode>
04 <z:row ows_ID="4" ows_Title="Title"
05 ows_Modified="2003-06-19 20:31:21"
06 ows_Created="2003-06-18 10:15:58"
07 ows_Author="3;#User1_Display_Name"
08 ows_Editor="7;#User2_Display_Name" ows_owshiddenversion="3"
09 ows_Attachments="-1"
10 ows__ModerationStatus="0" ows_LinkTitleNoMenu="Title"
11 ows_LinkTitle="Title"
12 ows_SelectTitle="4" ows_Order="400.000000000000"
13 ows_GUID="{4962F024-BBA5-4A0B-9EC1-641B731ABFED}"
14 ows_DateColumn="2003-09-04 00:00:00"
15 ows_NumberColumn="791.00000000000000"
16 xmlns:z="#RowsetSchema" />
17 </Result>
18 <Result ID="2,Update">
19 <ErrorCode>0x00000000</ErrorCode>
20 <z:row ows_ID="6" ows_Title="Title"
21 ows_Modified="2003-06-19 20:31:22"
22 ows_Created="2003-06-18 19:07:14"
23 ows_Author="2;#User1_Display_Name"
24 ows_Editor="6;#User2_Display_Name" ows_owshiddenversion="4"
25 ows_Attachments="0" ows__ModerationStatus="0"
26 ows_LinkTitleNoMenu="Title"
27 ows_LinkTitle="Title" ows_SelectTitle="6"
28 ows_Order="600.000000000000"
29 ows_GUID="{2E8D2505-98FD-4E3E-BFDA-0C3DEBE483F7}"
30 ows_DateColumn="2003-06-23 00:00:00"
31 ows_NumberColumn="9001.00000000000000"
32 xmlns:z="#RowsetSchema" />
33 </Result>
34 ...
35 </Results>
我们取结果的方式如下:
view sourceprint?01 /// <summary>
02 /// Class that holds the UpdateListItems webservice method result
03 /// </summary>
04 internal class UpdateResultBE
05 {
06 public List<SingleResultBE> Result { get; set; }
07 /// <summary>
08 /// Contructor that uses the result xml to load into objects
09 /// </summary>
10 /// <param name="resultXml"></param>
11 public UpdateResultBE(XmlNode resultXml, ListBE properties)
12 {
13 Result = new List<SingleResultBE>();
14 SingleResultBE singleResult;
15 if (resultXml == null)
16 return;
17
18 foreach (XmlNode node in resultXml.ChildNodes)
19 {
20 singleResult = new SingleResultBE();
21 try
22 {
23 singleResult.Id = node.Attributes["ID"].Value.Split(',')[0];
24 singleResult.Operation = node.Attributes["ID"].Value.Split(',')[1];
25
26 XmlNode errorCodeNode = FindChildNode(node, "ErrorCode");
27 if (errorCodeNode != null)
28 {
29 singleResult.ErrorCode = errorCodeNode.InnerText;
30 }
31
32 XmlNode errorTextNode = FindChildNode(node, "ErrorText");
33 if (errorTextNode != null)
34 {
35 singleResult.ErrorMessage = errorTextNode.InnerText;
36 }
37
38 XmlNode zRow = FindChildNode(node, "z:row");
39 if (zRow != null)
40 {
41 singleResult.Attachments = Convert.ToInt32(zRow.Attributes["ows_Attachments"].Value);
42 singleResult.Created = DateTime.Parse(zRow.Attributes["ows_Created"].Value);
43 singleResult.ListItemId = Convert.ToInt32(zRow.Attributes["ows_ID"].Value);
44 singleResult.ModerationStatus = Convert.ToInt32(zRow.Attributes["ows__ModerationStatus"].Value);
45 singleResult.Modified = DateTime.Parse(zRow.Attributes["ows_Modified"].Value);
46 singleResult.ListItemGuid = zRow.Attributes["ows_UniqueId"].Value;
47 if (zRow.Attributes.GetNamedItem("ows_Title") != null)
48 singleResult.Title = zRow.Attributes["ows_Title"].Value;
49 singleResult.BaseName = zRow.Attributes["ows_BaseName"].Value;
50 singleResult.FileDirRef = zRow.Attributes["ows_FileDirRef"].Value;
51 singleResult.FileRef = zRow.Attributes["ows_FileRef"].Value;
52 if (zRow.Attributes.GetNamedItem("ows_BaseName") != null)
53 singleResult.BaseName = zRow.Attributes["ows_BaseName"].Value;
54 }
55
56 Result.Add(singleResult);
57 }
58 catch (Exception ex)
59 {
60 Logger.Logger logger = Logger.LoggerFactory.GetLogger();
61 logger.Log(String.Format("Error when parsing the result. Exception: {0} /n XML: {1}", ex.Message, node.InnerXml));
62 }
63 }
64
65 }
66
67
68
69 /// <summary>
70 /// Find the Child node specified by name
71 /// </summary>
72 /// <param name="parent">Parent Node</param>
73 /// <param name="childNodeName">Child node name</param>
74 /// <returns></returns>
75 private XmlNode FindChildNode(XmlNode parent, string childNodeName)
76 {
77 foreach (XmlNode node in parent.ChildNodes)
78 {
79 if (node.Name == childNodeName)
80 return node;
81 }
82
83 return null;
84 }
85 }
SingleResultBE就是我们想要的结果集.
view sourceprint?01 /// <summary>
02 /// Class that holds the properties for each result returned by the UpdateListItems webservice
03 /// </summary>
04 public class SingleResultBE
05 {
06 public string Id { get; set; }
07 public string Operation { get; set; }
08 public string ErrorCode { get; set; }
09 public int ListItemId { get; set; }
10 public string Title { get; set; }
11 public DateTime Modified { get; set; }
12 public DateTime Created { get; set; }
13 public int Attachments { get; set; }
14 public int ModerationStatus { get; set; }
15 public string ErrorMessage { get; set; }
16 public string ListItemGuid { get; set; }
17 public string FileDirRef { get; set; }
18 public string FileRef { get; set; }
19 public string ServerUrl { get; set; }
20 public string EncodedAbsUrl { get; set; }
21 public string BaseName { get; set; }
22 public const string NO_ERROR = "0x00000000";
23 public const string Exist_ERROR = "0x8107090d";
24 }
返回结果集里的ErrorCode是0x00000000表示插入成功，如果是0x8107090d表示插入的item己经存在。
接下来我们讲解update item做法和UserGroup的用法
