.NET System.Timers.Timer的原理和使用(开发定时执行程序)

来源：岁月联盟编辑：exp 时间：2011-10-11

概述(来自MSDN)

Timer 组件是基于服务器的计时器，它使您能够指定在应用程序中引发Elapsed 事件的周期性间隔。然后可以操控此事件以提供定期处理。例如，假设您有一台关键性服务器，必须每周7 天、每天24 小时都保持运行。可以创建一个使用Timer 的服务，以定期检查服务器并确保系统开启并在运行。如果系统不响应，则该服务可以尝试重新启动服务器或通知管理员。

基于服务器的Timer 是为在多线程环境中用于辅助线程而设计的。服务器计时器可以在线程间移动来处理引发的Elapsed 事件，这样就可以比Windows 计时器更精确地按时引发事件。

基于Interval 属性的值，Timer 组件引发Elapsed 事件。可以处理该事件以执行所需的处理。例如，假设您有一个联机销售应用程序，它不断向数据库发送销售订单。编译发货指令的服务分批处理订单，而不是分别处理每个订单。可以使用Timer 每30 分钟启动一次批处理。

注意

当AutoReset设置为false时，Timer只在第一个Interval过后引发一次Elapsed事件。若要保持以Interval时间间隔引发Elapsed 事件，请将AutoReset设置为true。

Elapsed事件在ThreadPool线程上引发。如果Elapsed事件的处理时间比Interval长，在另一个hreadPool线程上将会再次引发此事件。因此，事件处理程序应当是可重入的。

注意

在一个线程调用Stop 方法或将Enabled 属性设置为false 的同时，可在另一个线程上运行事件处理方法。这可能导致在计时器停止之后引发Elapsed 事件。Stop 方法的示例代码演示了一种避免此争用条件的方法。

如果和用户界面元素（如窗体或控件）一起使用Timer，请将包含有Timer 的窗体或控件赋值给SynchronizingObject 属性，以便将此事件封送到用户界面线程中。Timer 在运行时是不可见的。

几点说明

1 private System.Timers.Timer _TestTimerEvent= new Timer();

1、默认的周期是0.1秒执行一次；

2、AutoReset的初始值为true.

3、它的timer机制和System.Threading.Timer 原理是一样的。

4、每次周期(Timer)运行一次会新起一个线程。

5、如果Elapsed事件的处理时间比Interval长，它每个周期执行都会新起一个线程，这个线程的执行时间不受interval的限定，可以比interval长，因为一个新周期执行，又会新起一个线程，Timer起的线程周期就是事件处理时间。

我们来看它的实现代码.（.net framework 提供的）.

001 //------------------------------------------------------------------------------

002 // <copyright file="Timer.cs" company="Microsoft">

004 // </copyright>

005 //-----------------------------------------------------------------------------

006

007 namespace System.Timers {

008

009 using System.Runtime.InteropServices;

010 using System.Security;

011 using System.Security.Permissions;

012 using System.Threading;

013 using System.ComponentModel;

014 using System.ComponentModel.Design;

015 using System;

016 using Microsoft.Win32;

017 using Microsoft.Win32.SafeHandles;

018

019 /// <devdoc>

020 /// <para>Handles recurring events in an application.</para>

021 /// </devdoc>

022 [

023 DefaultProperty("Interval"),

024 DefaultEvent("Elapsed"),

025 HostProtection(Synchronization=true, ExternalThreading=true)

026 ]

027 public class Timer : Component, ISupportInitialize {

028 private double interval;

029 private bool enabled;

030 private bool initializing;

031 private bool delayedEnable;

032 private ElapsedEventHandler onIntervalElapsed;

033 private bool autoReset;

034 private ISynchronizeInvoke synchronizingObject;

035 private bool disposed;

036 private System.Threading.Timer timer;

037 private TimerCallback callback;

038 private Object cookie;

039

040 /// <devdoc>

041 /// <para>Initializes a new instance of the <see cref='System.Timers.Timer'/> class, with the properties

042 /// set to initial values.</para>

043 /// </devdoc>

044 public Timer()

045 : base() {

046 interval = 100;

047 enabled = false;

048 autoReset = true;

049 initializing = false;

050 delayedEnable = false;

051 callback = new TimerCallback(this.MyTimerCallback);

052 }

053

054 /// <devdoc>

055 /// <para>

056 /// Initializes a new instance of the <see cref='System.Timers.Timer'/> class, setting the <see cref='System.Timers.Timer.Interval'/> property to the specified period.

057 /// </para>

058 /// </devdoc>

059 public Timer(double interval)

060 : this() {

061 if (interval <= 0)

062 throw new ArgumentException(SR.GetString(SR.InvalidParameter, "interval", interval));

063

064 int i = (int)Math.Ceiling(interval);

065 if( i < 0) {

066 throw new ArgumentException(SR.GetString(SR.InvalidParameter, "interval", interval));

067 }

068

069 this.interval = interval;

070 }

071

072 /// <devdoc>

073 /// <para>Gets or sets a value indicating whether the Timer raises the Tick event each time the specified

074 /// Interval has elapsed,

075 /// when Enabled is set to true.</para>

076 /// </devdoc>

077 [Category("Behavior"), TimersDescription(SR.TimerAutoReset), DefaultValue(true)]

078 public bool AutoReset {

079 get {

080 return this.autoReset;

081 }

082

083 set {

084 if (DesignMode)

085 this.autoReset = value;

086 else if (this.autoReset != value) {

087 this.autoReset = value;

088 if( timer != null) {

089 UpdateTimer();

090 }

091 }

092 }

093 }

094

095 /// <devdoc>

096 /// <para>Gets or sets a value indicating whether the <see cref='System.Timers.Timer'/>

097 /// is able

098 /// to raise events at a defined interval.</para>

099 /// </devdoc>

100 //[....] - The default value by design is false, don't change it.

101 [Category("Behavior"), TimersDescription(SR.TimerEnabled), DefaultValue(false)]

102 public bool Enabled {

103 get {

104 return this.enabled;

105 }

106

107 set {

108 if (DesignMode) {

109 this.delayedEnable = value;

110 this.enabled = value;

111 }

112 else if (initializing)

113 this.delayedEnable = value;

114 else if (enabled != value) {

115 if (!value) {

116 if( timer != null) {

117 cookie = null;

118 timer.Dispose();

119 timer = null;

120 }

121 enabled = value;

122 }

123 else {

124 enabled = value;

125 if( timer == null) {

126 if (disposed) {

127 throw new ObjectDisposedException(GetType().Name);

128 }

129

130 int i = (int)Math.Ceiling(interval);

131 cookie = new Object();

132 timer = new System.Threading.Timer(callback, cookie, i, autoReset? i:Timeout.Infinite);

133 }

134 else {

135 UpdateTimer();

136 }

137 }

138

139 }

140 }

141 }

142

143

144 private void UpdateTimer() {

145 int i = (int)Math.Ceiling(interval);

146 timer.Change(i, autoReset? i :Timeout.Infinite );

147 }

148

149 /// <devdoc>

150 /// <para>Gets or

151 /// sets the interval on which

152 /// to raise events.</para>

153 /// </devdoc>

154 [Category("Behavior"), TimersDescription(SR.TimerInterval), DefaultValue(100d), RecommendedAsConfigurable(true)]

155 public double Interval {

156 get {

157 return this.interval;

158 }

159

160 set {

161 if (value <= 0)

162 throw new ArgumentException(SR.GetString(SR.TimerInvalidInterval, value, 0));

163

164 interval = value;

165 if (timer != null) {

166 UpdateTimer();

167 }

168 }

169 }

170

171

172 /// <devdoc>

173 /// <para>Occurs when the <see cref='System.Timers.Timer.Interval'/> has

174 /// elapsed.</para>

175 /// </devdoc>

176 [Category("Behavior"), TimersDescription(SR.TimerIntervalElapsed)]

177 public event ElapsedEventHandler Elapsed {

178 add {

179 onIntervalElapsed += value;

180 }

181 remove {

182 onIntervalElapsed -= value;

183 }

184 }

185

186 /// <devdoc>

187 /// <para>

188 /// Sets the enable property in design mode to true by default.

189 /// </para>

190 /// </devdoc>

191 /// <internalonly/>

192 public override ISite Site {

193 set {

194 base.Site = value;

195 if (this.DesignMode)

196 this.enabled= true;

197 }

198

199 get {

200 return base.Site;

201 }

202 }

203

204

205 /// <devdoc>

206 /// <para>Gets or sets the object used to marshal event-handler calls that are issued when

207 /// an interval has elapsed.</para>

208 /// </devdoc>

209 [

210 Browsable(false),

211 DefaultValue(null),

212 TimersDescription(SR.TimerSynchronizingObject)

213 ]

214 public ISynchronizeInvoke SynchronizingObject {

215 get {

216 if (this.synchronizingObject == null && DesignMode) {

217 IDesignerHost host = (IDesignerHost)GetService(typeof(IDesignerHost));

218 if (host != null) {

219 object baseComponent = host.RootComponent;

220 if (baseComponent != null && baseComponent is ISynchronizeInvoke)

221 this.synchronizingObject = (ISynchronizeInvoke)baseComponent;

222 }

223 }

224

225 return this.synchronizingObject;

226 }

227

228 set {

229 this.synchronizingObject = value;

230 }

231 }

232

233 /// <devdoc>

234 /// <para>

235 /// Notifies

236 /// the object that initialization is beginning and tells it to stand by.

237 /// </para>

238 /// </devdoc>

239 public void BeginInit() {

240 this.Close();

241 this.initializing = true;

242 }

243

244 /// <devdoc>

245 /// <para>Disposes of the resources (other than memory) used by

246 /// the <see cref='System.Timers.Timer'/>.</para>

247 /// </devdoc>

248 public void Close() {

249 initializing = false;

250 delayedEnable = false;

251 enabled = false;

252

253 if (timer != null ) {

254 timer.Dispose();

255 timer = null;

256 }

257 }

258

259 /// <internalonly/>

260 /// <devdoc>

261 /// </devdoc>

262 protected override void Dispose(bool disposing) {

263 Close();

264 this.disposed = true;

265 base.Dispose(disposing);

266 }

267

268 /// <devdoc>

269 /// <para>

270 /// Notifies the object that initialization is complete.

271 /// </para>

272 /// </devdoc>

273 public void EndInit() {

274 this.initializing = false;

275 this.Enabled = this.delayedEnable;

276 }

277

278 /// <devdoc>

279 /// <para>Starts the timing by setting <see cref='System.Timers.Timer.Enabled'/> to <see langword='true'/>.</para>

280 /// </devdoc>

281 public void Start() {

282 Enabled = true;

283 }

284

285 /// <devdoc>

286 /// <para>

287 /// Stops the timing by setting <see cref='System.Timers.Timer.Enabled'/> to <see langword='false'/>.

288 /// </para>

289 /// </devdoc>

290 public void Stop() {

291 Enabled = false;

292 }

293

294 private void MyTimerCallback(object state) {

295 // System.Threading.Timer will not cancel the work item queued before the timer is stopped.

296 // We don't want to handle the callback after a timer is stopped.

297 if( state != cookie) {

298 return;

299 }

300

301 if (!this.autoReset) {

302 enabled = false;

303 }

304

305 FILE_TIME filetime = new FILE_TIME();

306 GetSystemTimeAsFileTime(ref filetime);

307 ElapsedEventArgs elapsedEventArgs = new ElapsedEventArgs(filetime.ftTimeLow, filetime.ftTimeHigh);

308 try {

309 // To avoid ---- between remove handler and raising the event

310 ElapsedEventHandler intervalElapsed = this.onIntervalElapsed;

311 if (intervalElapsed != null) {

312 if (this.SynchronizingObject != null && this.SynchronizingObject.InvokeRequired)

313 this.SynchronizingObject.BeginInvoke(intervalElapsed, new object[]{this, elapsedEventArgs});

314 else

315 intervalElapsed(this, elapsedEventArgs);

316 }

317 }

318 catch {

319 }

320 }

321

322 [StructLayout(LayoutKind.Sequential)]

323 internal struct FILE_TIME {

324 internal int ftTimeLow;

325 internal int ftTimeHigh;

326 }

327

328 [DllImport(ExternDll.Kernel32), SuppressUnmanagedCodeSecurityAttribute()]

329 internal static extern void GetSystemTimeAsFileTime(ref FILE_TIME lpSystemTimeAsFileTime);

330 }

331 }

332

333

在初始化的时候它的代码实现是这样的.

1 public Timer()

2 : base() {

3 interval = 100;

4 enabled = false;

5 autoReset = true;

6 initializing = false;

7 delayedEnable = false;

8 callback = new TimerCallback(this.MyTimerCallback);

9 }

而如果你是这样的话

01 public Timer(double interval)

02 : this() {

03 if (interval <= 0)

04 throw new ArgumentException(SR.GetString(SR.InvalidParameter, "interval", interval));

06 int i = (int)Math.Ceiling(interval);

07 if( i < 0) {

08 throw new ArgumentException(SR.GetString(SR.InvalidParameter, "interval", interval));

09 }

11 this.interval = interval;

12 }

你就需要再设置下AutoReset = True;

我们加载事件的Elapsed的代码实现是这样的.

01 /// <devdoc>

02 /// <para>Occurs when the <see cref='System.Timers.Timer.Interval'/> has

03 /// elapsed.</para>

04 /// </devdoc>

05 [Category("Behavior"), TimersDescription(SR.TimerIntervalElapsed)]

06 public event ElapsedEventHandler Elapsed {

07 add {

08 onIntervalElapsed += value;

09 }

10 remove {

11 onIntervalElapsed -= value;

12 }

13 }

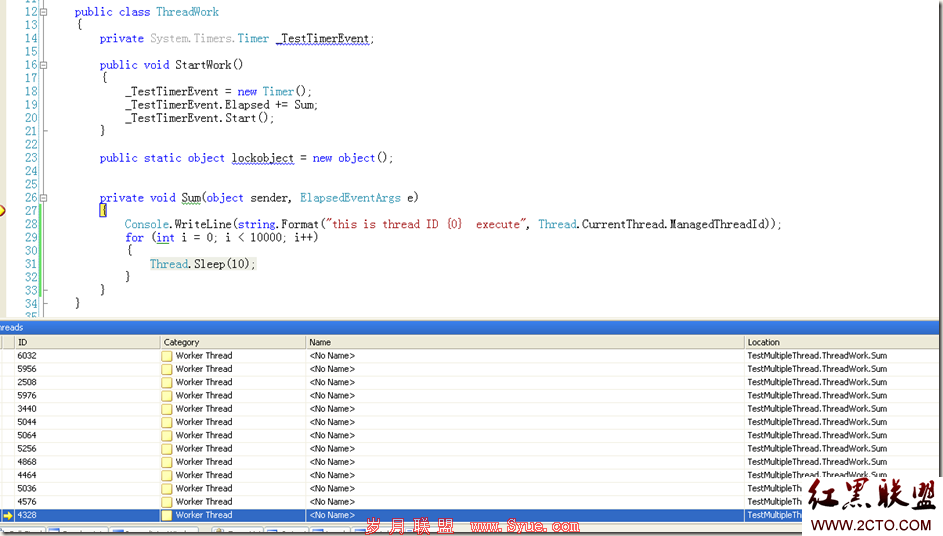

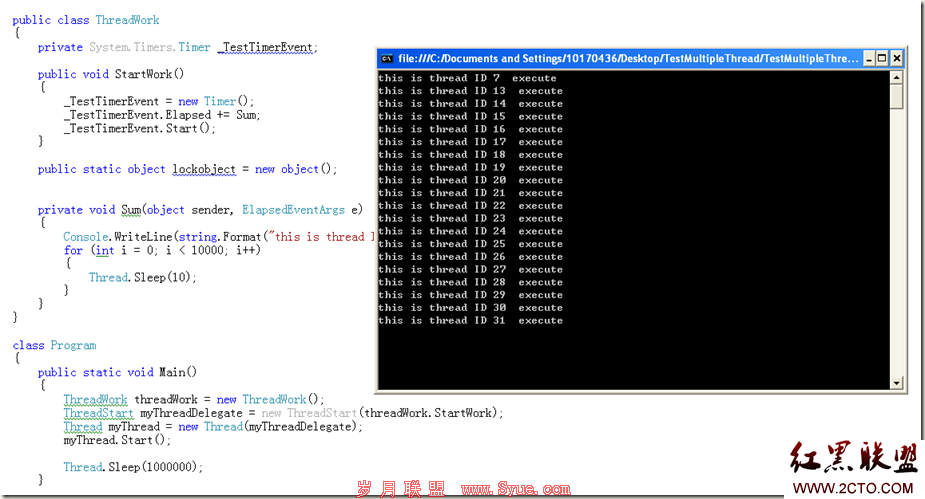

对它的基本原理有一定了解后，我们开始写一个简单的实现程序。

01 using System;

02 using System.Collections.Generic;

03 using System.Linq;

04 using System.Text;

05 using System.Threading;

06 using Timer = System.Timers.Timer;

07 using System.Timers;

09 namespace TestMultipleThread

10 {

12 public class ThreadWork

13 {

14 private System.Timers.Timer _TestTimerEvent;

16 public void StartWork()

17 {

18 _TestTimerEvent = new Timer();

19 _TestTimerEvent.Elapsed += Sum;

20 _TestTimerEvent.Start();

21 }

23 public static object lockobject = new object();

26 private void Sum(object sender, ElapsedEventArgs e)

27 {

28 Console.WriteLine(string.Format("this is thread ID {0} execute", Thread.CurrentThread.ManagedThreadId));

29 for (int i = 0; i < 10000; i++)

30 {

31 Thread.Sleep(10);

32 }

33 }

34 }

36 class Program

37 {

38 public static void Main()

39 {

40 ThreadWork threadWork = new ThreadWork();

41 ThreadStart myThreadDelegate = new ThreadStart(threadWork.StartWork);

42 Thread myThread = new Thread(myThreadDelegate);

43 myThread.Start();

45 Thread.Sleep(1000000);

46 }

47 }

48 }

查看的运行结果是:

我们看下执行的线程数有多少

能说明的一个问题就是在timer每次执行时都会新起一个线程来执行。

作者：spring yang

上一篇：MVC3 分部视图

下一篇：ASP.NET FormsAuthentication跨站点登录时绝对地址返回的问题

当前位置：首页 > 软件开发 > .NET > ASP.NET

.NET System.Timers.Timer的原理和使用(开发定时执行程序)

图片内容

最近更新

随机推荐
